Tooling

Description of Manufacturer

Micro grain tungsten carbide is at the heart of the secret of the extra long life that is achieved on all City Tools spiral-compression and profile tooling.

Together with the micro grain tungsten carbide City Tool uses the most advanced tool geometry to ensure the best possible finish and tool life.

City tools is also very hungry for new business and has exceptionally short turn around times on new tool designs, often out performing local suppliers with small minimum order size.

A sample of the most popular cutters are shown below.

For information, click here

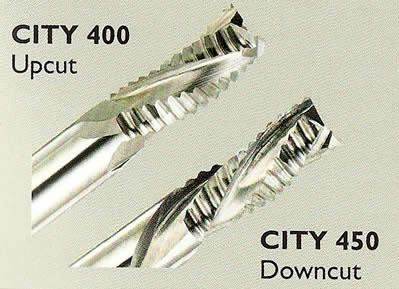

Roughing Tool - 400

Application:

These tools will produce a rippled edge cut and extremely quiet and smooth cutting.
Designed to provide excellent chip removal function. Reducing power consumption and friction. It also has longer useful life and durability.

Suggestion:

Speed Range: 12,0000(min)-18,0000(min) Feed Range: 3,500(mm/min)-5,000(mm/min)
The above data of Speed & Feed are just for reference. The correct data depends on specific application.

Custom sizes available per your specifications

Download Brochure here

Spiral Tool - 800

Application:

Application: Designed for fast feed rates and optimum edge finish on double-sided laminated material. Also, it can prevent chipping or fizzing on the top and the bottom of the cut.
" Suggestion:

Suggestion:

Speed Range 12,000(min)-18,000(min)
Feed Range: 3,500(mm/min)-5,000(mm/min)
The above data of Speed & Feed are just for reference. The correct data depends on specific application.

Custom sizes available per your specifications.

Download Brochure here

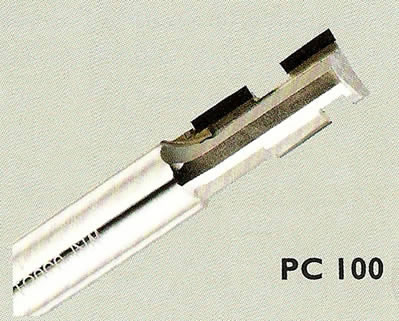

Diamond Router - PC 100

Application:

Recommended for routing double-sided laminated and MDF material. Prevent the burr of workpiece of upper and bottom face .

Suggestion:

Speed Range: 12,000(min)-24,000(min)
Feed Range: 8,000(mm/min)-12,000(mm/min)
The above data of Speed & Feed are just for reference. The correct data depends on specific application.

Custom sizes available per your specifications.

Download Brochure here
